METAL DECK ROLL FORMER
Product description:
Our equipment is manufactured based on top technology and experiences, and the Roof Panel Producing Line has high durability and convenient management. It enables to manufacture the products of world’s best grade designing various wave forms exquisitely to meet customers’ requirement. The trapezoidal and corrugated metal sheets prove the high quality degree reached by the roll forming systems according to the international standard. Here, you can analyze the data profile of the main products manufactured by our machinery.
Our equipment is manufactured based on top technology and experiences, and the Roof Panel Producing Line has high durability and convenient management. It enables to manufacture the products of world’s best grade designing various wave forms exquisitely to meet customers’ requirement. The trapezoidal and corrugated metal sheets prove the high quality degree reached by the roll forming systems according to the international standard. Here, you can analyze the data profile of the main products manufactured by our machinery.
Our equipment is manufactured based on top technology and experiences, and the roll forming line has high durability and convenient management. It enables to manufacture the products of world’s best grade designing various wave forms exquisitely to meet customers’ requirement.

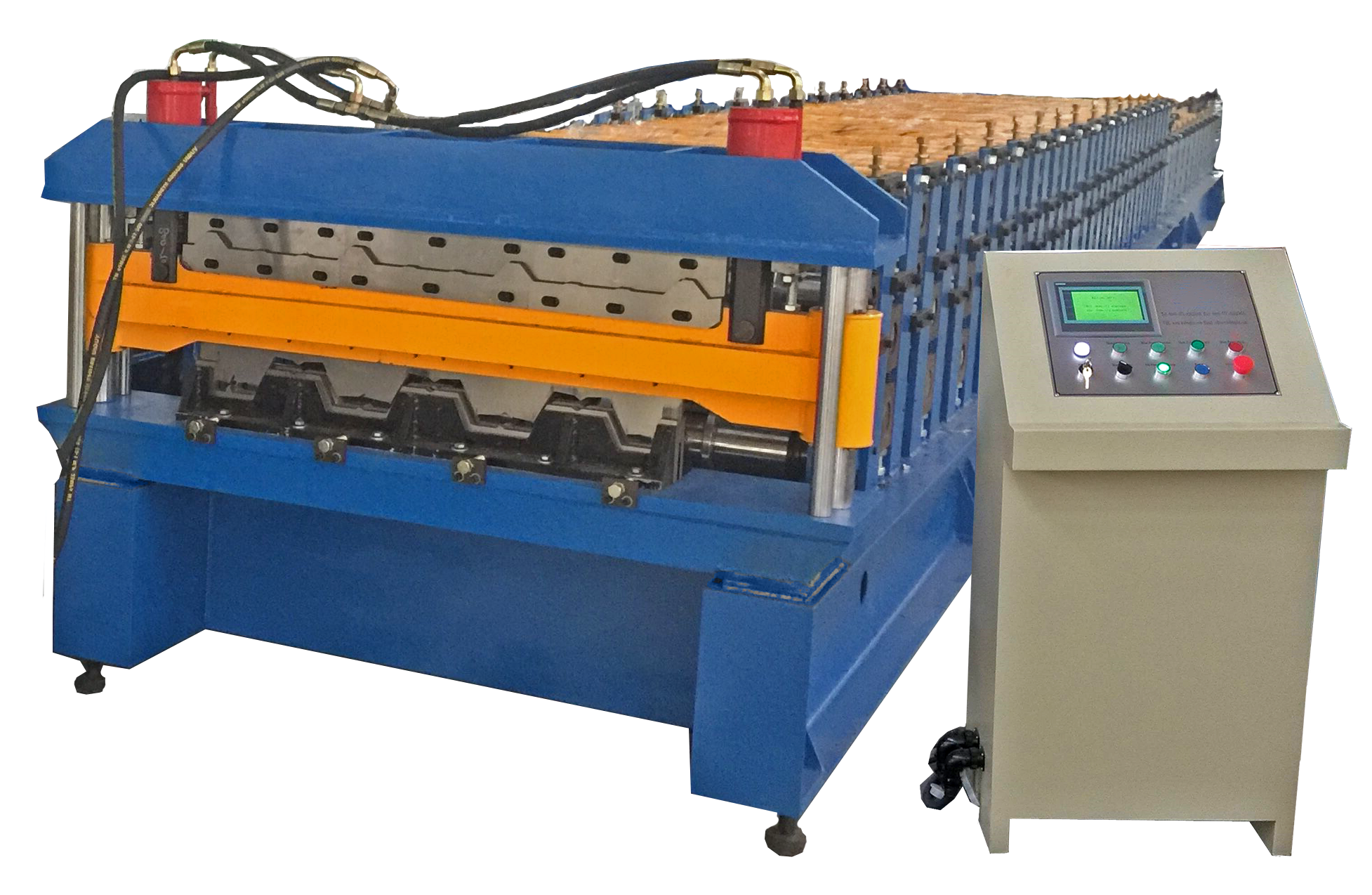

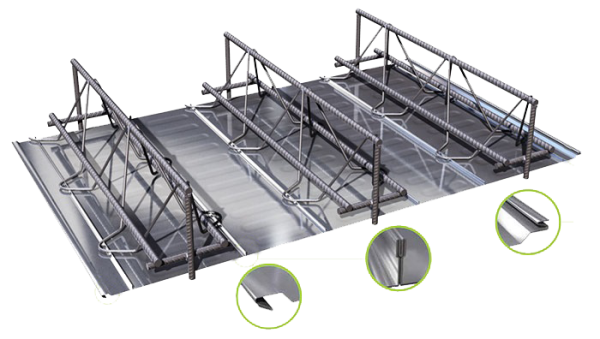

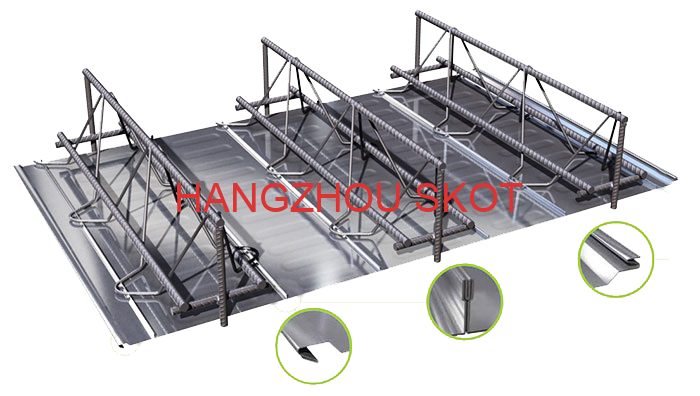

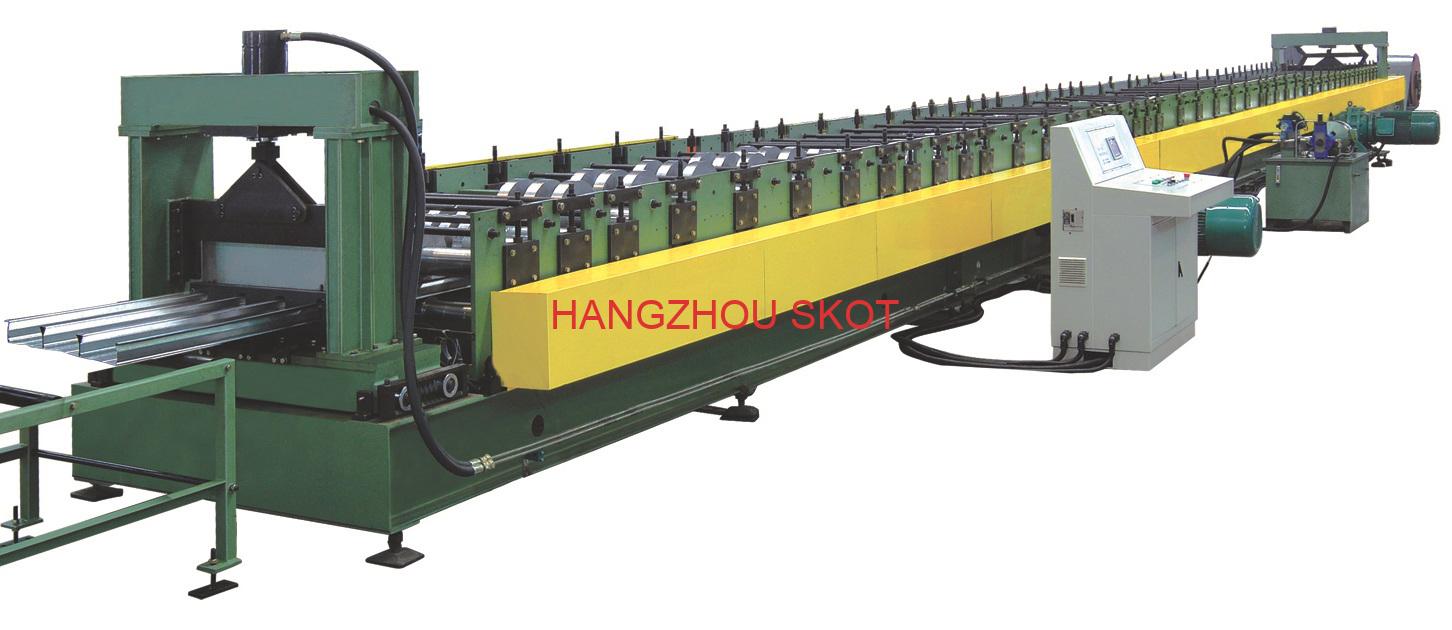

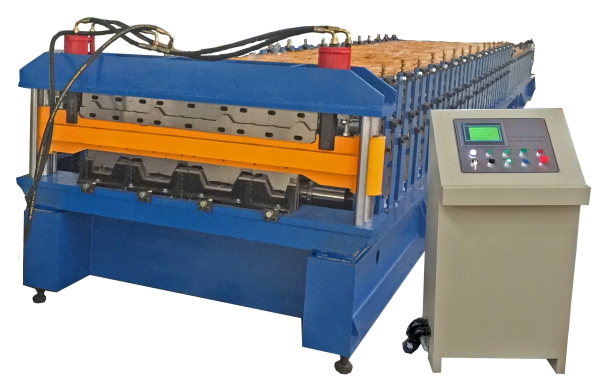

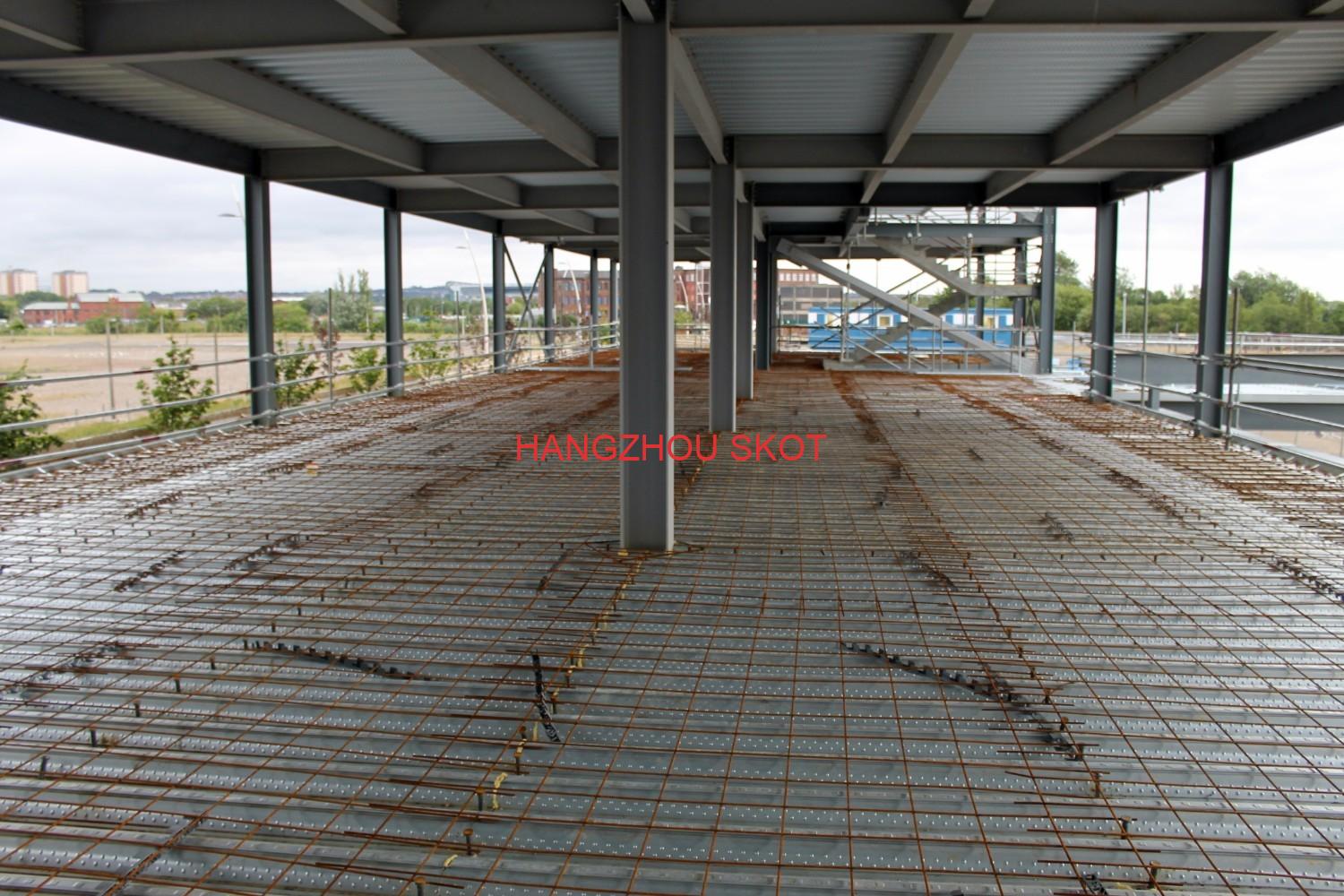

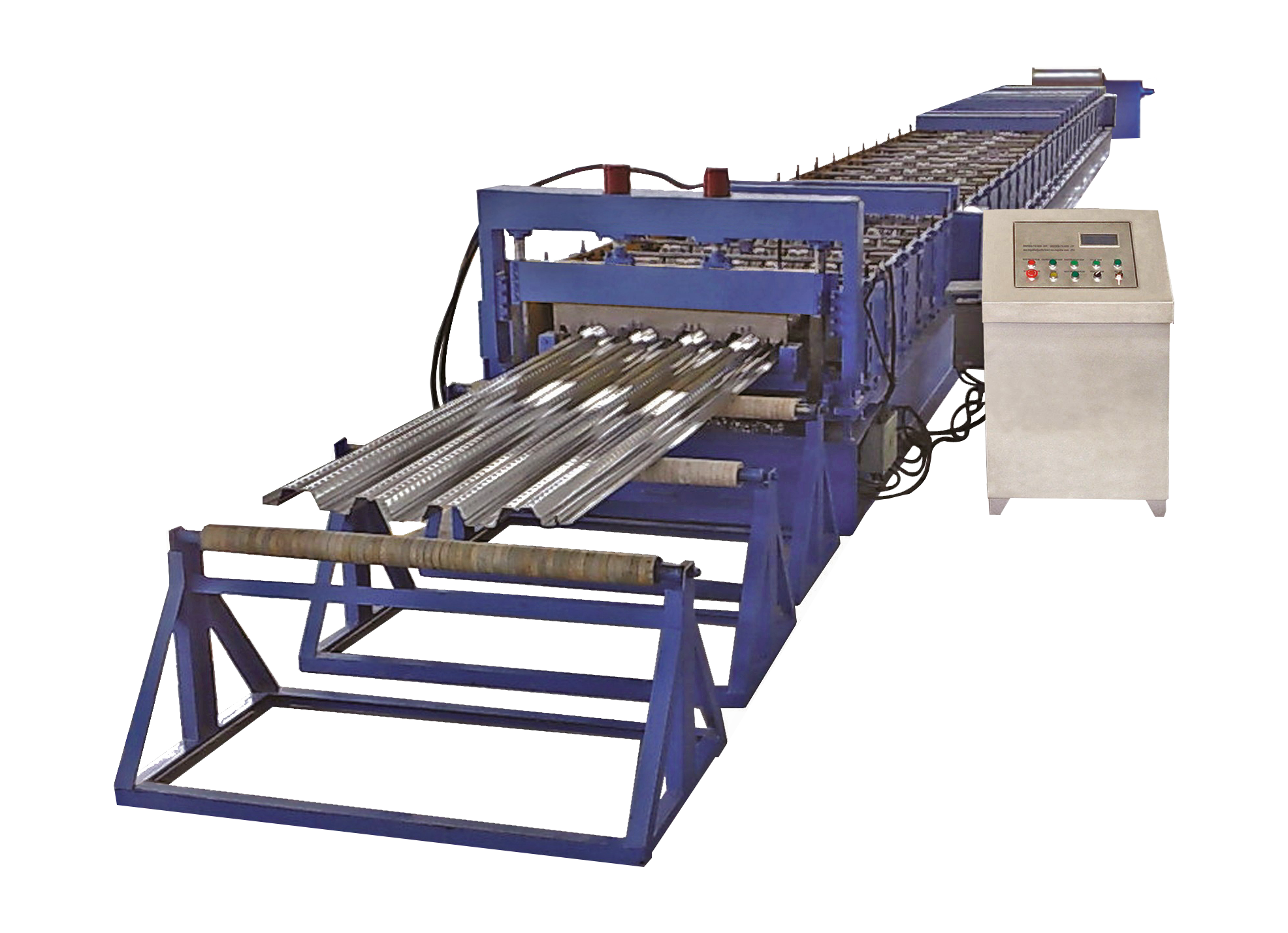

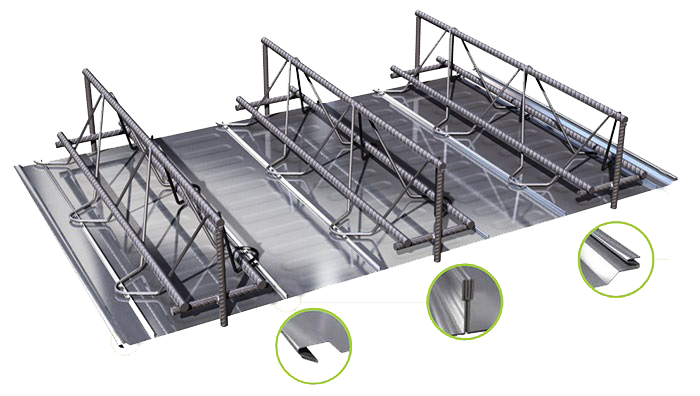

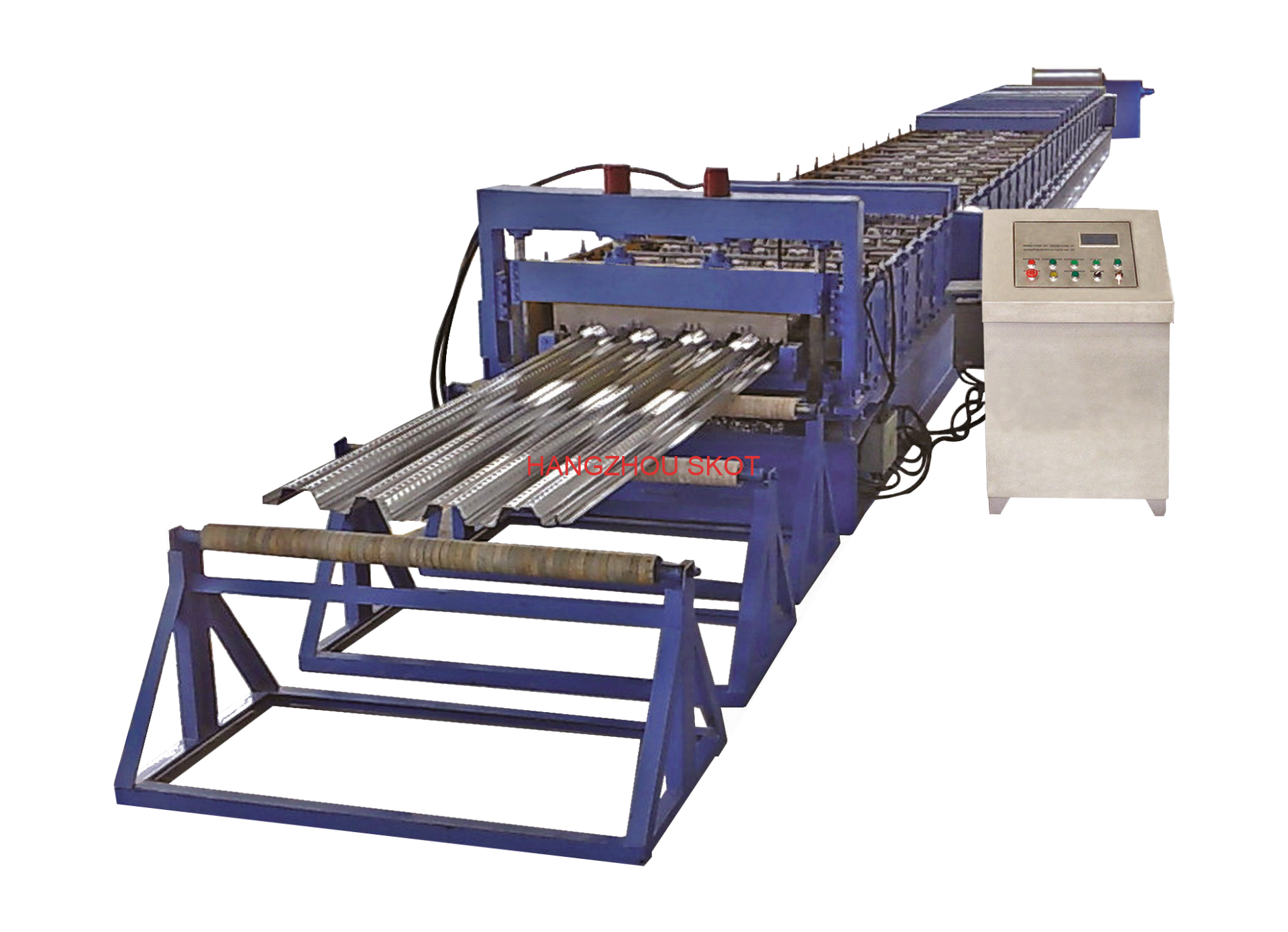

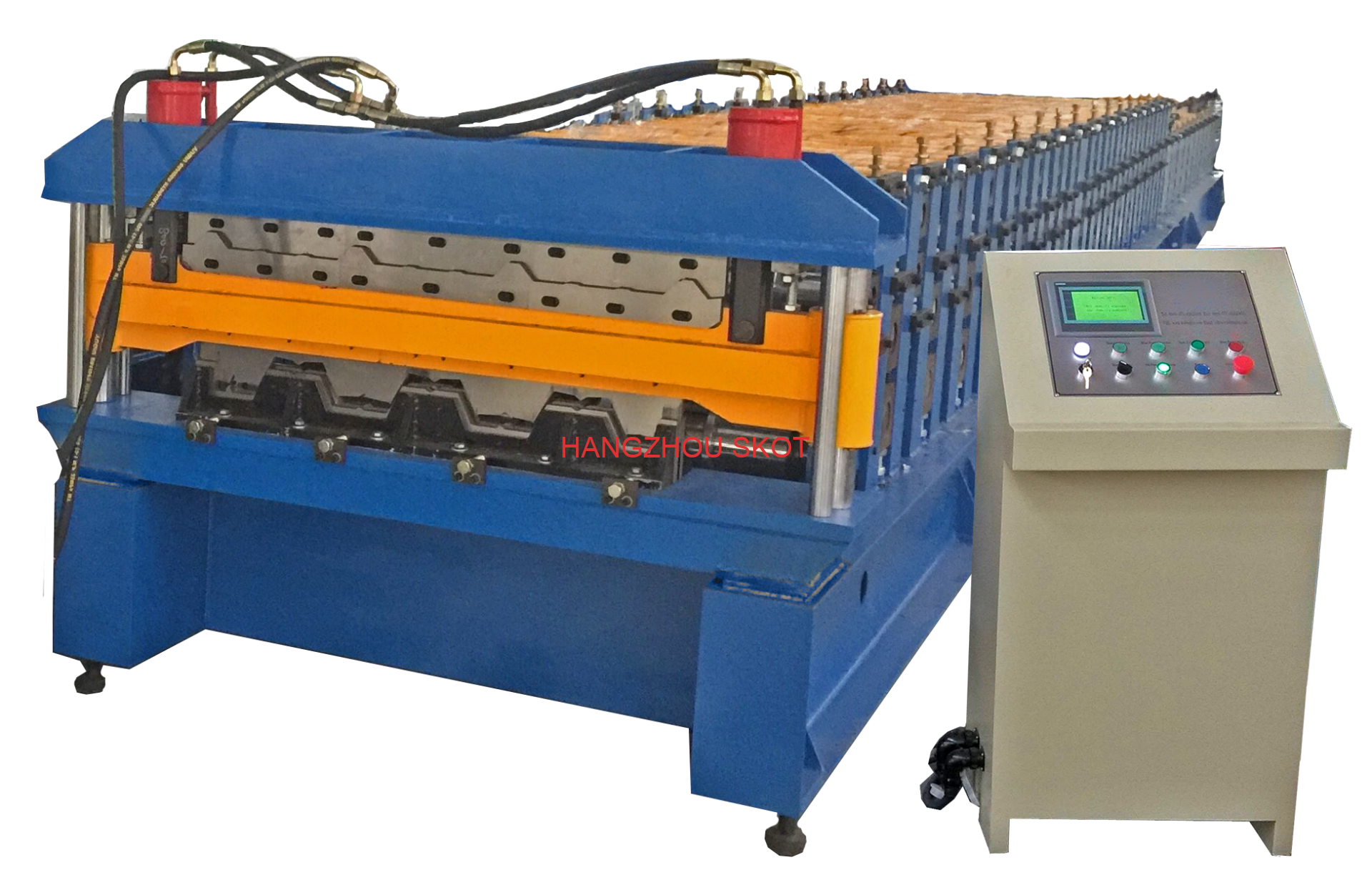

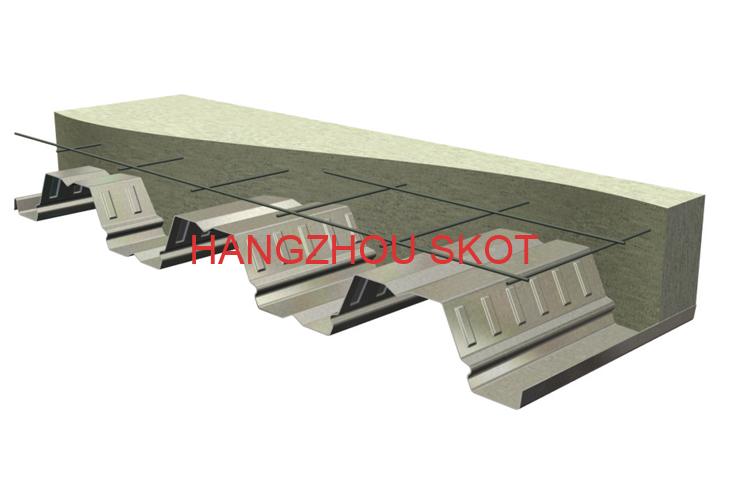

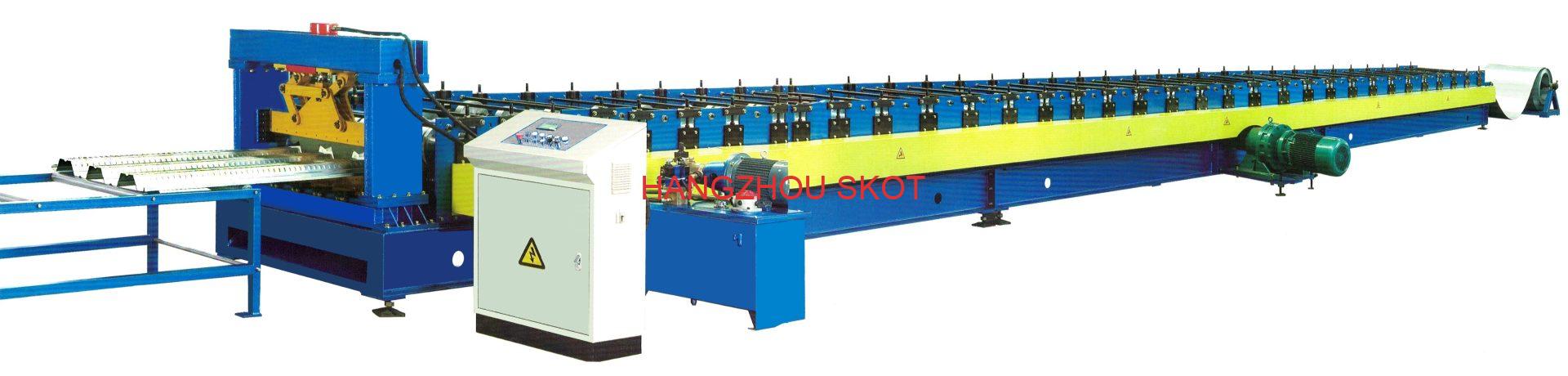

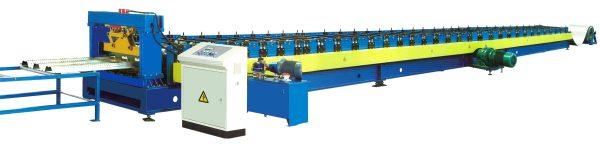

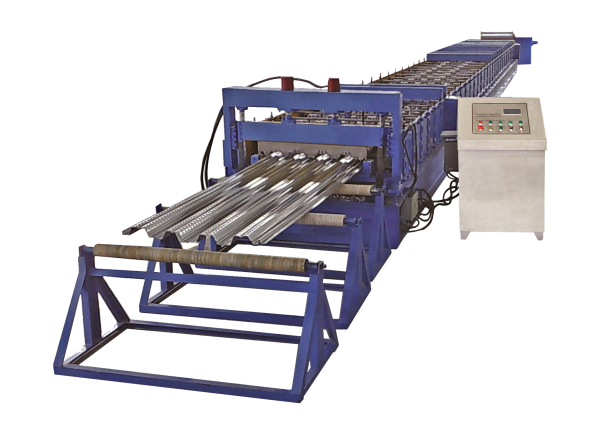

This Roll forming machine for deck plate is manufactured based on top technology and experiences, and the Roll forming machine for deck plate is equipped with high durability and convenient management. Deck plate panels produced by the equipment are using the steel coils (0.8 ~ 1.6mm Thickness) and efficient for the reinforcement of strength during placing concrete, providing with embossed shape to prevent detachment from concrete.
* Main Technical Parameters
| Material | type | galvanized steel | aluzinc steel |
| Thickness (mm) | 0.8~1.2 | 0.8~1.2 | |
| Yield stress (Mpa) | 300-350 | 230-300 | |
| Max. forming speed (m/min.) | 10~12 | ||
| Roller material | 45# steel with chrome treatment | ||
| Roller driven type | chain transmission/ gear box drive | ||
| controller | PLC & touch screen and button | ||
| operation | Touch screen and button | ||
| Hydraulic system pressure (Mpa) | 12 | ||
| Hydraulic station motor power | 5.5 | ||
| Main motor power (kw) | 22~30 | 18.5 | |
| Total power (kw) | 27.5~35.5 | 24 | |
| Total weight (ton) | 18 | 18 | |
* Process Sketch
Uncoiling the sheet ⇨ Material feeding ⇨Roll forming ⇨ Measure the length ⇨ Cutting the panel ⇨ Panels running out to the supporter (optional: automatic stacker).
